Description

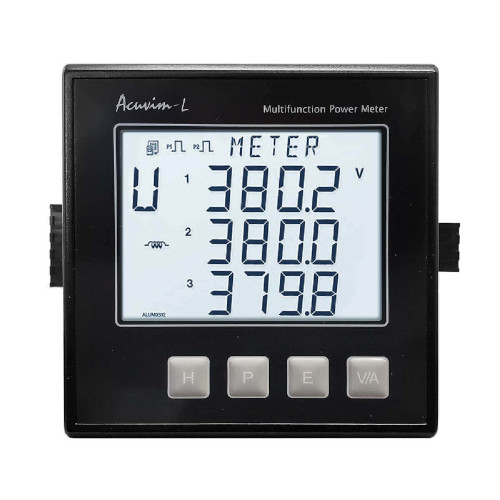

The Accuenergy Acuvim-CL is a multifunction power meter which is ideal for monitoring and controlling of power distribution systems. The Acuvim-CL may be used as a data gathering device for an intelligent Power Distribution System or a Plant Automation System.

The quality of the power system is important with increasing use of electronic loads such as computers, ballasts or variable frequency drives. With the Acuvim-CL power analysis option, any phase current or voltage can be displayed and the harmonic content calculated. By knowing the harmonic distribution, action can be taken to prevent overheated transformers, motors, capacitors, neutral wires and nuisance breaker trips. Redistribution of the system loading can also be determined.

Features:

• RS485 Communications (Modbus RTU Protocol 1,200 – 38,400 baud rate)

Metering

• Voltage V1, V2, V3, V12, V23, V31
• Current I1, I2, I3, In
• Power P1, P2, P3, Psum
• Reactive Power Q1, Q2, Q3, Qsum
• Apparent Power S1, S2, S3, Ssum
• Frequency F
• Power Factor PF1, PF2, PF3, PF
• Energy Ep imp, Ep exp
• Reactive Energy Eq imp, Eq exp
• Apparent Energy Es
• Demand Dmd I1, Dmd I2, Dmd I3, Dmd P, Dmd Q, Dmd S

Monitoring

• Power Quality
• Voltage Harmonics 2nd to 15th and THD
• Current Harmonics 2nd to 15th and THD
• Voltage Unbalance Factor U unbl
• Current Unbalance Factor I unbl
• Max/Min Statistics

Need CT’s for your meter? Check out our selection of Accuenergy Current Transformers
