Description

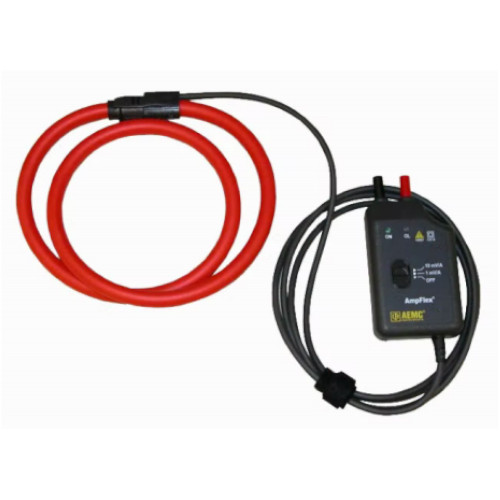

The AEMC AmpFlexis a flexible AC current probe composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes cannot be used. Measurement range is 5 to 1000A. Output signal is 10mV/A and 1mV/A. Sensor length is 36″.

• 36″, 1000A Input with 10mV/A & 1mV/A Output
• Accuracy 1% of Reading
• TRMS measurements when connected to a TRMS instrument
• No core saturation or damage if overloaded
• Waterproof sensor
• Shape Memory for custom pre-shaping of sensor before use
• Very high frequency response
• Low phase shift for power measurements
• Insensitive to DC, measures only AC component on DC + AC signals
• Excellent linearity
• Lightweight

APPLICATIONS:

• Measuring wide bus bars
• Measuring crowded circuit breaker panels
• Measuring around large cable bundles
• Measuring in any traditional application
• Measuring around irregular shapes
