Description

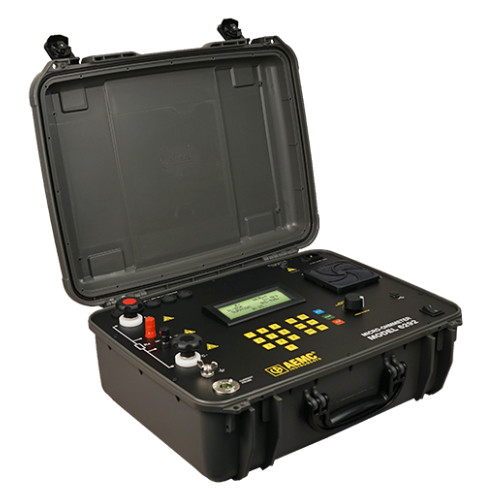

The AEMC Instruments Model 6292 high-current Micro-ohmmeter is a portable, microprocessor-controlled instrument. It incorporates optimized filters and protection for measurements in electrical substations. The Model 6292 can be used to accurately measure very low contact resistances on high voltage circuit-breakers and switches, busbars, etc., with test currents up to 200A. It employs the 4 terminal-method Kelvin principle to eliminate errors caused by test leads and their contact resistances.

Measurement accuracy is assured through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½ digit resolution. It allows measurement of resistances up to 1 Ohm with resolution as low as 0.1µOhm. Test currents may be adjusted by the operator and are displayed on the digital display.

Features:

• Perform tests normally or with both sides of the switch gear connected to the ground
• Four languages available through user selection
• Cooling system to improve the number of sequential tests that can be performed
• Programmable Test Duration to 120 seconds
• Direct viewing of stored tests on the instruments display
• Programmable and manual test current selection
• Accurately measures low contact resistances with test currents up to 200A
• Measures resistances up to 1Ohm
• Low resolution of 0.1µOhm
• Large LCD digital display
• Stores up to 8000 test results
• USB communication interface
• Direct printout using DataView® software and a PC
• Rugged, light-weight and water-resistant case

Applications:

• Test switchgear contact resistance
• Test circuit breaker contact resistance
• Test air frame bonding
• Test rail bonding
• Test pipeline bonding
