Description

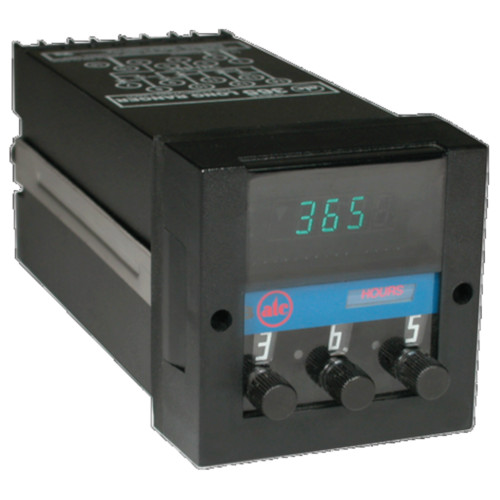

The Automatic Timing & Controls 365C series is a microprocessor-based digital timer with three rotary knobs for setting and adjustment of the Preset. The Preset can be any three-digit value from .01 Sec to 999 Hours. The Decimal and Range are switch selectable. The high-intensity blue vacuum fluorescent display is DIP switch selectable to Timeup or Timedown. Two heavy-duty 7A DPDT relays provide instantaneous, interval or delayed output control. Plug-in panel mounting allows easy replacement without the removal of field wiring.

Each 365C long-ranger covers the overall span of 0.01 sec. to 999 hrs., in nine switch-selected ranges of 0 to 9.99, 99.9 or 999 sec., min. or hrs. The timer can be optimized within any selected range simply by removing appropriate selector knobs (ex. with the timer in the 9.99 sec. range, you can obtain a tamper-proof span of 0.99 by setting the left selector at 0 and removing the knob).

Packaged in a 72 mm DIN housing, the 365C occupies 40% less panel space than conventional timers. It is a true plug-in timer that can be replaced in seconds without disturbing housing or wiring. The 365C is also fully gasketed and O-ring sealed to be dust and water-tight.

Features:

• Industry standard digital timer
• Adjustable range 0.01 sec. to 999 hours
• High brightness VF display
• High noise immunity
• UL recognized
