Description

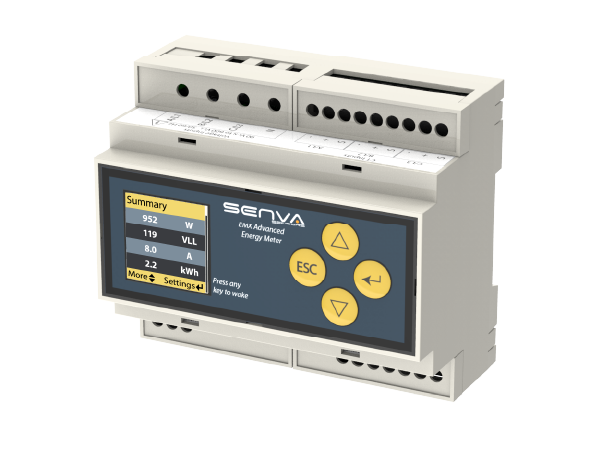

The EMX Advanced is the most user-friendly and quick installation True RMS energy meter on the market. Its line powered with a color OLED screen and data-rich user interface making setup as easy as L1, L2, L3. Equipped with both pulse and RS485 outputs, the EMX Advanced can connect to almost any metering or control device. Ideal for retrofits, the EMX accepts any 0.333V CT or standard metering Rogowski coil with no need for time-consuming and bulky integrators. Mixed or match loads or CT sizes!

Intelligent Meter Technology

• OLED screen with user interface that streamlines the setup process
• Self-powered with 1 to 3 phase voltage, 90-600V
• Functions as three independant voltage/current power meters in one–mix and match CT sizes for multiple loads
• 2 pulse inputs for summing multiple meters or for general (configurable) pulse counting from any pulse meter – water, gas, steam, etc
• 2 pulse outputs for separately tracking positive and negative energy usage, additional power metrics or power quality alarms
• Provides accurate RMS (Root Mean Square) metering of harmonic loads

Ultimate Flexibility

• One universal meter supports all metering CT options in the product family
• Supports mounting on PR30 (TS 35/F6) DIN rail
