Description

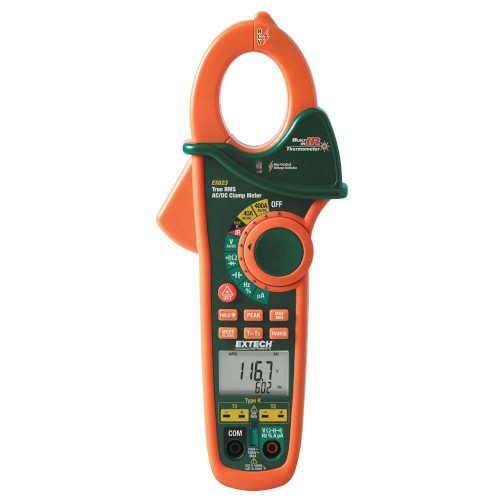

The Extech EX600 series are dual-input clamp-on multimeters which will measure AC Current, AC or DC Voltage, Resistance, Frequency, Capacitance, and Temperature. The EX600 series can also function as a non-contact voltage detector with a LED alert.The EX600 series also come with many of the standard Extech features which makes these meters suitable for a wide range of applications. These features include things such as Data Hold and Peak Hold, Autoranging with manual override and Auto Power Off with an audible alert. The EX600 series also features a 1.4" (36mm) jaw opening to fit conductors up to 500MCM and is built with a double-molded housing for increased protection.Unique to the EX623 is the ability to also measure DC Current. The EX613 will measure up to 400 AC or DC Amps. The EX623 also features the built-in Infrared Thermometer for non-contact temperature measurements.

Features:

• The EX623 will measure up to 400 AC/DCA & 600 AC/DCV
• True RMS measurements for accurate AC Voltage and Current measurements
• Dual type K thermocouple input with Differential Temperature function (T1, T2, T1-T2)
• Built-in non-contact Voltage detector with LED alert
• Built-in non-contact IR Thermometer with laser pointer for locating hot spots (up to 518°F/270°C)
• IR Thermometer features an 8 to 1 Distance to Target Ratio
• DC µA multimeter function for HVAC flame rod Current measurements
• Data Hold plus fast Peak Hold of current surges during motor startup
• 40,000 count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges
• Measures motor capacitors to 40,000µF
• 1.4" (36mm) jaw opening for conductors up to 500MCM
• Rugged double molded housing
• Auto power off with audible alert and disable function
• Autoranging with manual override
• Complete with CAT III-600V, double molded test leads, 9V battery, two Type K bead wire probes (-4 to 482°F/-20 to 250°C), and case
