Description

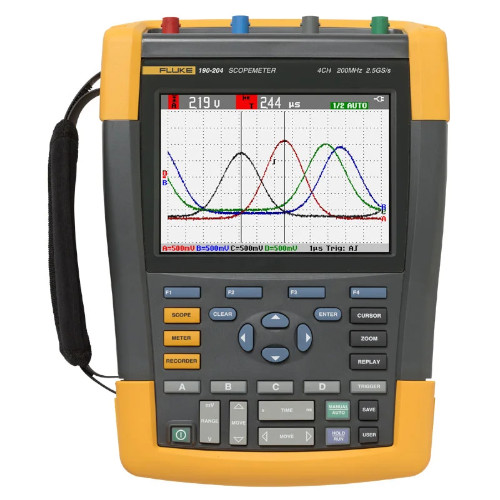

The FLUKE 190 Series II Digital Oscilloscopes combine an unprecedented level of performance, ruggedness and portability with CAT III 1000V / CAT IV 600V safety ratings. The 190 Series II is available in 60 MHz, 100 MHz and 200 MHz bandwidth models, both with real-time sampling rates up to 2.5 GS/s and 400 ps resolution to capture noise and other disturbances. The 190 Series II also features a deep memory, up to 10,000 samples per channel, so you can examine very small parts of the waveform in detail. These scopemeters are also IP-51-rated to withstand dust, drips, humidity and wide temperature variations. Fluke Scopemeter test tools are hand-held and battery operated and designed to meet the demands of field service professionals.

Features:

• Choose from 60 MHz, 100 MHz and 200 MHz bandwidth models
• FLUKE-190-204/AM = 4-Channel, 200 MHz
• 2 or 4 electronically isolated inputs
• Fast sampling rate, up to 2.5 GS/s with up to 400 ps resolution
• Deep memory: 10,000 samples per channel
• Dedicated 5000 count digital multimeter in 2-channel models
• Quad meter measurements via scope BNC inputs in 4-channel models
• Connect-and-View continuous auto-trigger, single shot, pulse width and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• TrendPlot, trend measurement readings for up to 22 days
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• Isolated USB ports for memory devices and PC connectivity
• IP-51-rated for dust and drip proof to withstand harsh environments
• CAT III 1000V / CAT IV 600V safety rated

Additional Info

• 4
• 2.5 GS/s
