Description

The HD Electric DDVIP-138/K02 Dual Display Voltage Indicating Phaser includes a pair of single stick line-to-ground voltage indicators that communicate with each other wirelessly. Both units are constructed with high strength molded housings, epoxy encapsulated high voltage resistors and a digital LED display. The DDVIP-138/K02 measures 50 Hz and 60 Hz AC RMS voltage from 100V to 80 kV line-to-ground and 100V to 138 kV line-to-line. The frequency is determined automatically.

Features:

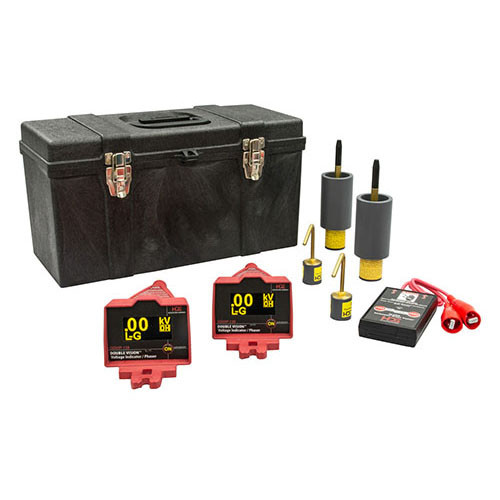

• DDVIP-138/K02 includes: (2) 025-OLPS-5 Overhead Hook Probes, (2) ASP-15/25 Underground Bushing Probes, (1) PT-DDVIP Proof Tester & CS-DDVM Carrying Case
• Measures voltage from 100V to 138kV line-to-line
• Can be used individually as voltage indicators or together for phasing operations up to 100 ft. (30m) apart
• Two LED displays are automatically synchronized during phasing operations
• Clear in-phase and out-of-phase indication
• Versatile for overhead & underground applications
• Capacitive Test Point and Peak Hold modes
