Description

The HD Electric UCT-8/K02 Underground Cable Fault Tester is a lightweight, one-piece operation for underground DC leakage current testing. This tool is used to test the de-energized primary shielded voltage cable for a fault. Test results are clearly displayed as an analog bar graph along with an indication of a good or faulted cable. A self-contained 8kV high voltage source powers the tester using a 9V lithium battery, making the UCT-8 a compact single hotstick operation tool for testing cable.

Features:

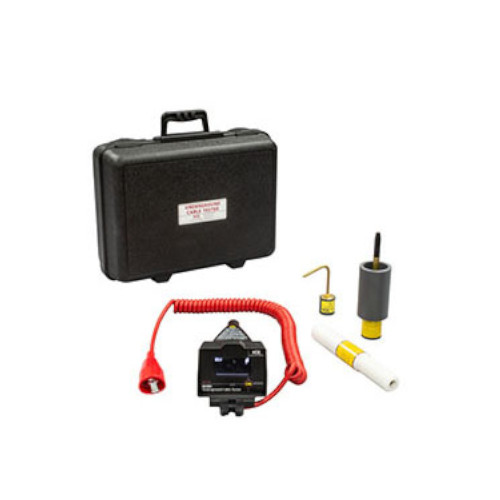

• UCT-8/K02 includes: Overhead Brass Hook Probe, Bushing Probe, Elbow Probe & Carrying Case
• Compact and lightweight solution for underground cable testing
• DC Hi-Pot test of de-energized, shielded underground primary cable
• No external power required – self-contained 8kVDC voltage source
• Can be used up to a distance of 1500 ft (457m)
• Clear and simple test results – analog bar graph and indication of good or faulted cable
• Safety feature – measures AC voltage before converting to a DC voltage tester
• Lightweight, single hot stick operation for testing cable
