Description

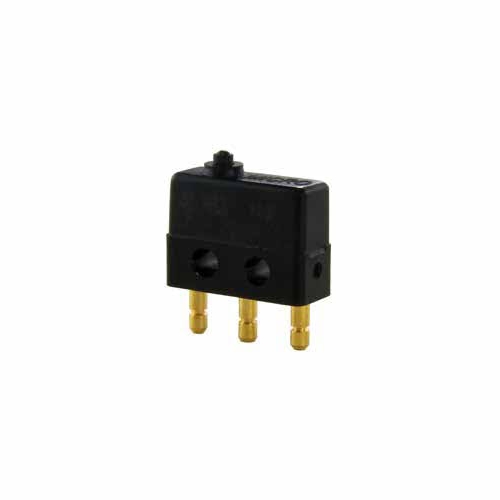

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH™ premium subminiature switches are
designed for repeatability and enhanced product life. The MICRO SWITCH™ SX Series delivers consistent performance
within a range of conditions.

Offering enhanced repeatability, the MICRO SWITCH™ SX Series’ lower operating force provides for application versatility.
Like the MICRO SWITCH™ SM Series, the SX Series (which is a smaller package) offers gold contacts for low energy
switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the
SX switch.

Features:

• Industry-leading life cycle rating reduces the need to replace
  switches over life in an OEM platform – reducing total
  system cost
• Very wide temperature range allows for years of reliable
  performance in the harshest of conditions
• MIL-PRF-8805 qualified listings
• Operating forces as low as 0,147 N [15 g] and differential
  travel as low as 0,025 mm [0.001 in] delivers consistent
  precise switch characteristics
