Description

The Hoyt 5000 series of analog panel meters consists of a popular industrial styled Lexan case that has a gasket for harsh environmental applications which seal out dust and other air-suspended damaging particles. A NEMA-4 external gasket is optional. The 5000 series is available with optional stud placement configurations for panel interchangeability. This built-in interchangeability eliminates the need for panel changes, setups and redressing of panels, it solves all of your instrument replacement problems.

Features:

• Available in 3 sizes: 1.75″, 2.75″ & 3.50″
• AC Current, DC Current, AC Voltage & DC Voltage inputs available
• Mounting Options – Cases are interchangeable with a variety of competitive instruments and standard stud placements. The built in interchangeability eliminates the need for drawing changes, setups and re-drilling of panels
• Gasket Sealing Design – Industry standard dust resistant construction is a standard feature and the unique gasket sealing design provides good gasket sealing while allowing for quick modification and scale changes while maintaining the integrity of the instrument
• Dustproof Lexan Construction – Gasketed construction to seal out dust and other air-suspended damaging particles. The 5000 series is also made with UL 94V material. Ideal where impact and strength is required in harsh environments

Models & Sizes:

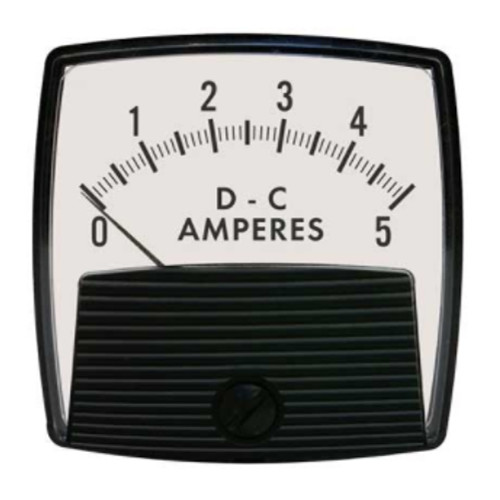

• 5015 – 1.75″ D.C. Moving Coil
• 5016R – 1.75″ A.C. Repulsion
• 5025 – 2.75″ D.C. Moving Coil
• 5026 – 2.75″ A.C. Repulsion
• 5035 – 3.50″ D.C. Moving Coil
• 5036 – 3.50″ A.C. Repulsion

SPECIAL / CUSTOM RANGES & SCALES

At Ram Meter Inc. we can build virtually any meter for your application! Wether you’re looking for a non-standard input range, a custom scale or if you want a company logo printed on your meter, give us a call or fill out our Custom Instrumentation contact form form and we will make sure you are taken care of right away.
