Description

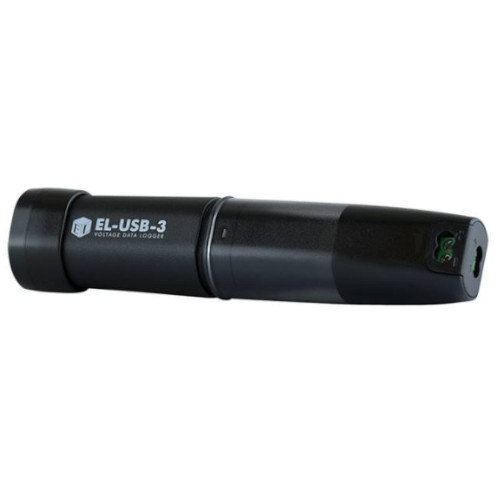

The Lascar Electronics EL-USB-3 is a standalone data logger which measures and stores over 32,000 voltage readings over a 0 to 30V d.c. range at a resolution of 50mV d.c. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the available free downloadable EasyLog software (available as a free download from www.easylogusb.com). Data can then be graphed, printed and exported to other applications.

The data logger is supplied complete with a lithium metal battery, which gives three year’s logging life. The data logger is also
issued with a 0 to 30V d.c. cap and features a pair of screw terminals, a set of equitable measurement leads and then followed
up with a set of durable crocodile clips.

Features:

• 0 to 30V d.c. measurement range
• Stores over 32,000 readings
• Logging rates between 1 second and 12 hours
• Connection via two screw terminals
• Immediate and delayed logging start
• User-programmable alarm thresholds
• Status indication via red and green LEDs
• EasyLog software available as a free download
