Description

The Lascar Electronics EMV 1200 is an easy to mount 3-Digit LCD digital panel meter. To install the meter, the user need only

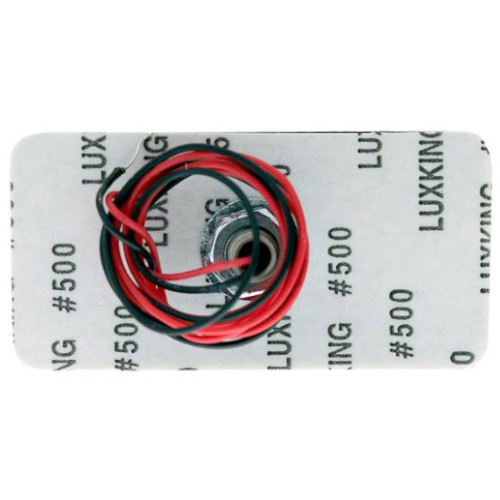

drill a single 5.5mm (7/32″) hole in the panel. The meter is fitted to the panel by locating its threaded stud through the hole, fitting the washer and tightening the nut provided. The meter’s connecting wires pass through the hollow stud into the target application for connection. The meter features a 4 to 25V measurement range with 100mV resolution and is powered from the signal it is measuring. Only valid readings are displayed; the meter indicates “LO” at voltages below 4V and “HI” at voltages above 25V. A rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.

Features:

• Single Hole Mounting
• 4 to 25V d.c. Full Scale Reading
• 3-Digit LCD Display
• 12.5mm / 0.5″ LCD Digit Height
• Reverse Polarity Protection
• 2-Wire Operation
• Splashproof
