Description

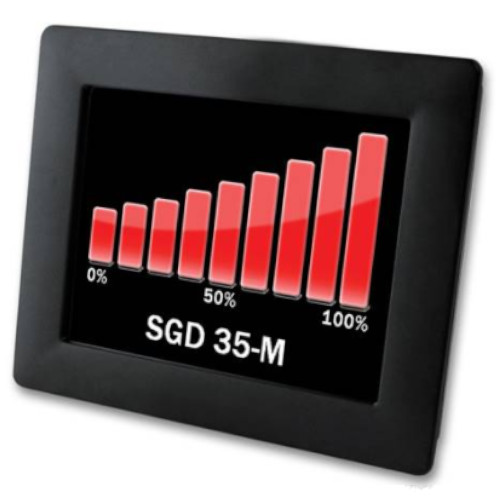

The Lascar Electronics SGD 35-M is a PanelPilot Compatible graphics display with a 320 x 240 pixel (QVGA) color display and USB programming interface. Using the PanelPilot software (available for Windows 7, 8.1 and 10), users are able to choose
from an ever-increasing number of voltmeter types which can then be customized to their needs. Colors, text labels, splash screen and input voltage scaling can all be customized by the user through the software and then uploaded to the SGD 35-M through the USB connection.

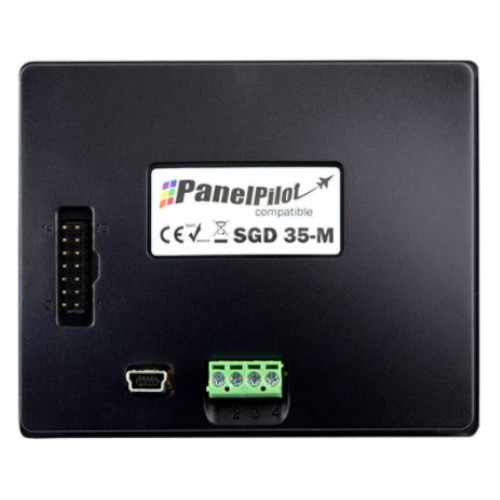

Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw
terminals to connect the inputs.

The PanelPilot M software can be found at www.lascarelectronics.com/software.

Features:

• 3.5” color TFT screen
• Use PanelPilot software, to setup and customize the display. Compatible with Windows 7, 8.1 and 10
• Multiple voltmeter configurations included free
• Programmable via the USB interface
• Simple panel mounting solution
• Wide operating voltage of 4V – 30V d.c.
• Measures voltage from 0 – 40V d.c.
• Digital hold
