Description

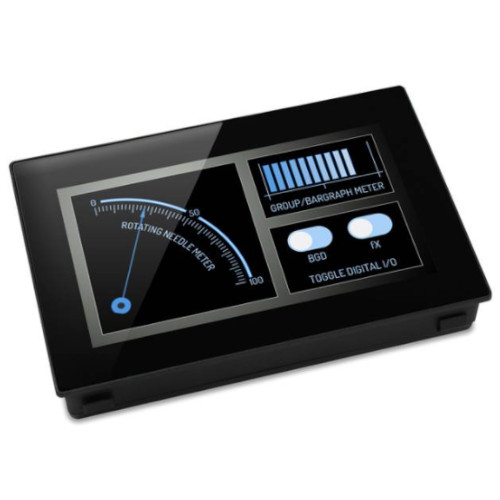

The Lascar Electronics SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. The low-profile display features a 4.3” capacitive touch screen and an ARM 9 processor running embedded Linux. The display can be powered
from either USB or a 5 to 30V d.c. supply and offers users a wealth of hardware interfaces which include four 16bit
bi-polar analog inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs (maximum
current sink 10mA), four 8bit PWM outputs, PID Control, multi-channel data logging and trend graphs. Serial RS232 and accessories available for RS485 communication and four-channel thermistor temperature measurement.

Users program the display using the free PanelPilotACE Design Studio software which allows the creation of anything
from simple meters and dials, through to advanced user interfaces with control elements.

The PanelPilotAce Design Studio software can be found at www.lascarelectronics.com/software.

Features:

• 4.3″ Capacitive Touchscreen Display
• USB or 5 to 30V d.c. power supply options
• Free PanelPilotAce Design Studio drag-and-drop style software package for rapid development
• (4) 16-bit Bi-polar Analog Inputs
• (8) Digital input/output pins
• (2) Alarm Outputs
• (4) 8-bit PWM Outputs
• PID Control
• Multi-channel Data Logging and trend graphics
• RS232 & RS485 Communication
