Description

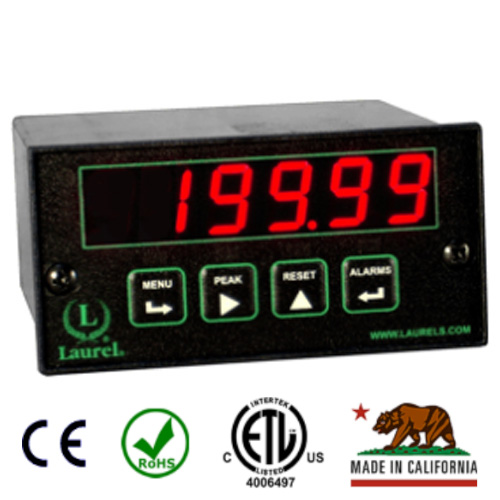

The Laurel Electronics Laureate™ DC digital panel meters feature a 5-digit, 7-segment, 14.2 mm (.56″) high Red or Green LED display and can be powered by 85-260 VAC with a 12-32 VAC or 10-48 VDC optional power supply. The Laureate™ DC meters will accept various types of inputs including DC Current and DC Voltage. These digital panel meters can also be ordered with analog output, relay outputs and communications for increased flexibility.

Features:

• Fast response: reading 0-16.7 ms after completion of each input signal cycle
• Measurement range from 0.1% to 100% of full scale
• Accurate to 99.9% of full scale, 10 Hz to 10 kHz
• 0.2, 2, 20, 200, 300 & 600 DC voltage ranges
• 2, 20, 200 mA and 5A DC current ranges
• All ranges factory calibrated
• Scaleable to 5 digits for external current shunts or 5A current transformers
• Selectable peak or valley display
• 5-264 Vac universal AC power supply
• 1/8 DIN case sealed to NEMA-4X from front panel
• Optional serial I/O: Ethernet, USB, RS232, RS485, Ethernet-to-RS485 converter
• Optional relay output: dual or quad relays, contact or solid state
• Optional isolated analog output: 4-20 mA, 0-20 mA, 0-10V, -10 to +10V
• Optional low voltage power: 10-48 Vdc or 12-32 Vac
