Description

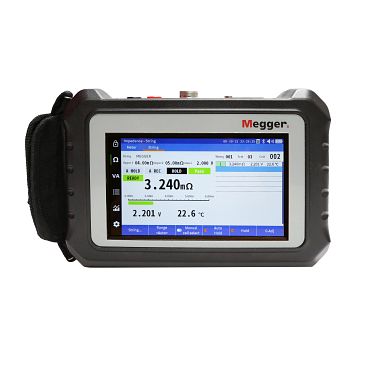

The BITE5 is a battery tester that will test lead acid
batteries, NiCD batteries as well as lithium-ion batteries.
The BITE5 will measure and record battery voltage,
impedance, and temperature. The BITE5 also supports
discharge testing. It will measure the voltage and current
throughout the discharge cycle. The BITE5 can also
measure the impedance and temperature throughout the
discharge cycle.

Battery impedance testing

The BITE5 will measure cell impedance, cell voltage, and
temperature. The recorded data can be trended on the
unit’s touch screen. View the trended data of each test
or trend the data of each cell. Set pass, warning, and
fail limits for voltage and impedance. Record the ripple
voltage, ripple current, and float current and transfer the
recorded data via USB or via an SD card to the PowerDB
software, then create custom reports and automated
analysis.

Battery discharge testing

The BITE5 will record voltage, DC current, impedance,
and temperature of each cell throughout the entire
discharge test. Measure the average impedance at the
end of the commissioning test and use this as a limit for
future impedance tests. Trend the recorded data on the
BITE5 touch screen and view the trended data of each
test, or trend the discharge of each cell. Transfer the
recorded data via USB or via an SD card to the PowerDB
software, then create custom reports.

Solsar systems

Measure and record combiner DC voltages. Measure
the input and output of inverters. Test the lithium-ion
batteries.

Features:

• Tests lead acid (VLA and VRLA), NiCD, and
  lithium-ion
• Measures cell impedance
• Cell voltage
• Cell temperature
• Cell voltage ripple
• AC current (ripple)
• DC current (float)
• Supports discharge testing
• Measures cell voltages throughout discharge
• Measure cell temperature throughout discharge
• Measure cell impedance throughout discharge
• Measure DC current throughout discharge
• Measure string voltages up to 1000 V DC
• Measure solar combiner boxes up to 1000 V DC
• Measure DC side of inverters up to 1000 V DC
• Measure AC side of inverter up to 600 V AC
• Wirelessly transfer data to PowerDB
