Description

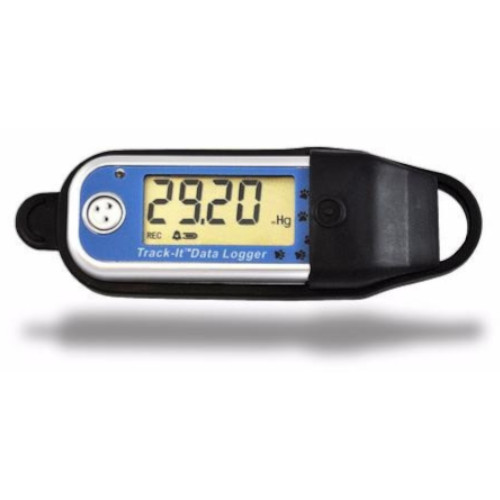

The Monarch Instruments Track-It™ Barometric Pressure/Temperature Data Logger is a battery powered stand alone compact data logger that records up to 64,000 samples of Barometric Pressure and/or Temperature data. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours.

The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. Barometric (also known as atmospheric) pressure can be displayed in a variety of engineering units. It can be used as an altimeter. Information displayed on the LCD is user selectable and can be sequenced by pressing the logger button. There is a multicolored LED indicator to notify user of alarms or general activity. A splash proof protective cover protects the logger when in use. Additionally, the logger can be used to record external inputs using optional Track-It DC voltage or DC current modules.

Features:

• Up to 64,000 samples per record
• Small compact size
• Integral USB interface
• Free Android Transporter App
• Free Windows software
• Long life battery option
• Temperature range –4 to 185°F/-20 to 85°C
• Accepts external DCV/DCI inputs
• High accuracy and repeatability
• Multiple user selectable displays
• Alarm set points
• Multiple engineering units
• Protective rubber boot included

Typical Uses:

• Weather
• Environmental Comfort
• Health and Well Being
• Building Management
• Healthcare Facilities
• Laboratory
• Altitude
• Manufacturing
• Transportation
• Aviation

Additional Info

• Barometric Pressure
• 1
