Description

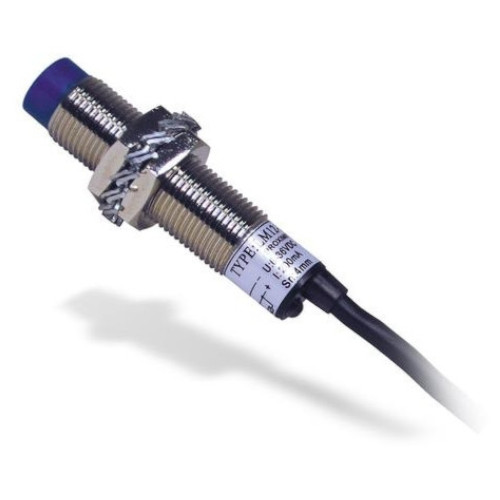

The Monarch Instruments PS-12 is a three wire proximity sensor that outputs an open collector PNP pulse. The sensor operates at a 0.15 inch (4 mm) gap with a 0.45 inch (12 mm) target and has a red LED on-target indicator. The sensor is housed in a threaded metal IP67 shell and supplied with an M12 nut and 6-foot shielded cable with tinned wires.

6180-032 PS-12 Specifications:

• Input Voltage: 6 – 36 DCV at 15 mA
• Output: Open Collector PNP – Normally Open (NO)
• Sensing Distance: 0.15 inch (4 mm) – Target should be at least = sensor diameter
• Sense Indicator: LED indicates target present
• Max Speed: 24,000 RPM (400 Hz)
• Operating Temp.: -13° to +167° F (-25° to +75° C)
• Cable Length: 6 feet (1.8 m)
• Material: Threaded metal
• Protection: IP67
• Mechanical: Standard Size: M12
• Dimensions: 2.0 inch (L) x 0.48 inch diameter (50 x 12 mm)
