Description

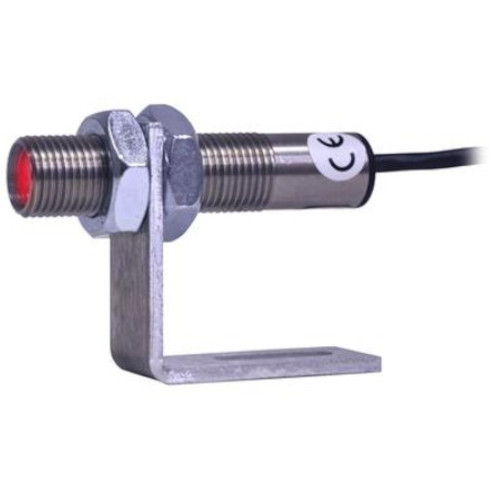

The Monarch Instruments ROS-W Remote Optical Sensor has a visible red LED light source and green LED on-target indicator. The red LED light source acts as the aiming device during setup and can accurately measure speeds from 1-250,000 RPM from a distance of up to 36 inches with a maximum offset angle of 45 degrees from the rotating object. The sensor is housed in a threaded 303 stainless steel tube and supplied with a 90 degree mounting bracket, jam nuts and an 8 foot shielded cable. The ROS-W also comes with tinned wire leads.

6180-056 ROS-W Specifications:

• Speed Range: 1-250,000 RPM
• Illumination: Visible Red LED
• On-Target Indicator: Green LED on wire end cap
• Operating Range: up to 36° (0.9 m) and 45 degrees offset from target
• Power Requirement: 3.0 – 15 VDC at 40 mA
• Output Signal: Negative pulse input voltage (+V) to 0
• Operating Temp.: 14° to 158° F (-10° to 70° C)
• Humidity: Maximum relative humidity 80% for temperature up to 88° F (31° C) decreasing linearly to 50%
  relative humidity at 104° F (40° C)
• Connection: Tinned Wire Leads
• Cable Length: 8 feet (2.4 m)
• Material: 303 Stainless Steel supplied with two M16 Jam Nuts and Mounting Bracket
• Lens: Acrylic Plastic
• Dimensions: Threaded Tube 2.90 in x 0.62 in diameter (M16 x 1.5 x 74 mm) long
