Description

The Monarch Instruments Nova-Pro 100 LED combines all the features of their hand held LED stroboscopes together with a full function laser tachometer to create a compact, ergonomic and extremely powerful two in one predictive maintenance tool. The stroboscope light source is made up of twelve LED’s which are extraordinarily bright yet extremely efficient allowing cool continuous operation and extremely long battery life (up to 19 hours on a single charge). Continuous operation is also possible with the optional AC adapter. The Nova-Pro 100 LED is designed for simple stroboscopic stop motion inspection and RPM measurement applications. The integral laser module is an optional item that can be added to make the 100 a full featured tachometer.

Features:

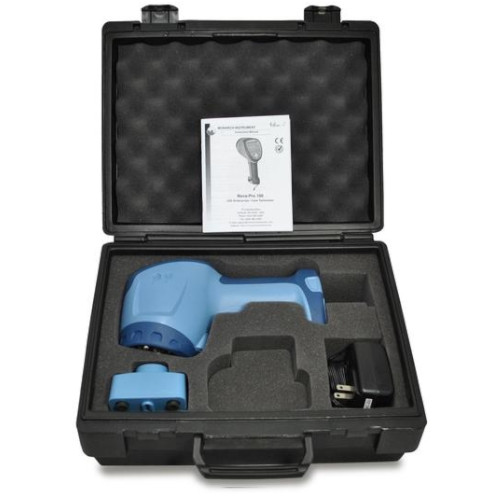

• 6241-011 Nova-Pro LED Includes: Stroboscope, standard battery, recharging station with interchangeable wall plugs, plastic carrying case and manual
• Stroboscope & Tachometer in one unit
• Super bright LED’s
• Integral/removable laser module (optional accessory)
• Splash resistant IP54 enclosure
• 1/4" x 20 tripod mount
• Ergonomic one handed operation
• Removable rechargeable Li-ion battery
• Continuous AC operation available (optional accessory)

Benefits of LED:

• Energy efficient with long battery life (9 hours typical)
• Extremely bright, uniform light output
• Completely silent
• Cool operation
• No lamp replacements
• Extremely high flash rates (up to 999,999 FPM)

Typical Uses:

• Visual running inspections of: Fan blades, motors, shafts, gears, rollers, webs, belts,
  sheaves, chains, sprockets and much more without having to shut down your process
• Diagnose alignment issues
• Determine speed of rotating equipment using strobe or built in laser tachometer
• Troubleshoot high speed automation processes by placing them in virtual slow motion
• Print quality inspection
• Textile processing inspection
• Phase reference balancing

Additional Info

• LED
