Description

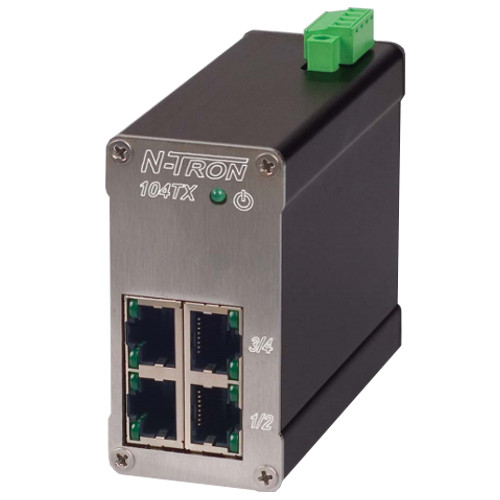

The N-Tron 104TX is an industrial network switch designed to solve the most demanding industrial communication requirements while providing high throughput and minimum downtime. The 104TX provides four RJ-45 auto sensing 10/100BaseTX ports. All ports are full/half duplex capable, using “state of the art” Ethernet switching technology. The 104TX auto-negotiates the speed and flow control capabilities of the four TX port connections, and configures itself automatically.

Since the 104TX is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match specific network environments. The 104TX supports up to 2,000 MAC addresses, enabling these products to support extremely sophisticated and complex network architectures. The 104TX is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The N-Tron 104TX combines affordability and the plug & play simplicity of the unmanaged hub.

Features:

• Compact, Space Saving Package
• Full IEEE 802.3 Compliance
• American Bureau of Shipping (ABS) Type Approval
• EN50155 for Railway applications
• Four 10/100BaseTX RJ-45 Ports
• Unmanaged Operation
• Extended Environmental Specifications
• -40°C to 80°C Operating Temperature
• >2M Hours MTBF
• Supports Full/Half Duplex Operation
• Up to 800 Mb/s Maximum Throughput
• MDIX Auto Sensing Cable
• Auto Sensing Speed and Flow Control
• Full Wire Speed Communications
• Store-and-forward Technology
• Redundant Power Inputs (10-30 VDC)
• LED Link/Activity Status Indication
