Description

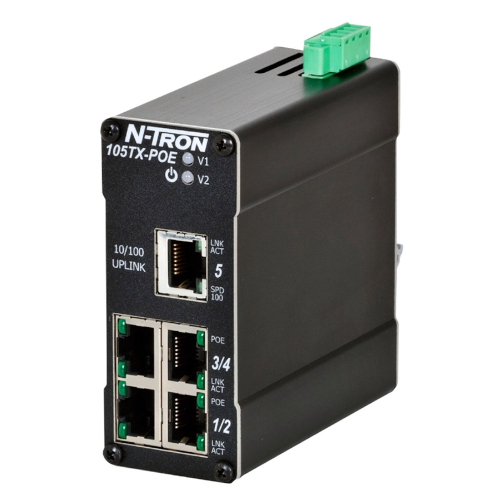

The N-Tron 105TX-POE Unmanaged Industrial Ethernet Switch is designed to trasmit power, along with data, over an Ethernet network and is ideal for PoE (Power over Ethernet) capable devices where running an AC power feed is either not possible or cost effective. This feature allows an end user to power a PoE camera, wireless access point, or any other PoE capable device without the need for running separate wires for power. This also allows the ability for a centralized battery backup for all these devices.

The 105TX-POE provides five RJ-45 auto-sensing 10/100BaseTX ports. All ports are full/half duplex capable, using “state of the art” Ethernet switching technology. Four of the five RJ-45 ports also act as PoE ports allowing power to pass through four of the eight strands of CAT5 cable. Each PoE port supports up to 15.4 watts of power.

The 105TX-POE auto-negotiates the speed and flow control capabilities of the five TX port connections and configures itself automatically. In addition, the 105TX-POE also supports up to 2,000 MAC addresses, enabling this product to support extremely sophisticated and complex network architectures.

Features:

• Compact, space saving package
• Full IEEE 802.3 and 802.3af Compliance
• Certified for Rail Applications
• Five 10/100BaseTX RJ-45 Ports (4 Mode A PoE Ports)
• Unmanaged Operation
• -40&degC to 85° Operating Temperature
• Automatic Detection of Connected PoE Devices
• Support for Full/Half Duplex Operation
• Auto-Sensing Duplex, Speed and MDIX
• Up to 1.0 Gb/s Maximum Throughput
• Full Wire Speed Communications
• Redundant Power Inputs (46-49 DCV)
• Power Fault Status LED’s
• LED Link/Activity Status Indication
• LED PoE Status Indication
• Hardened Metal DIN-Rail Enclosure
