Description

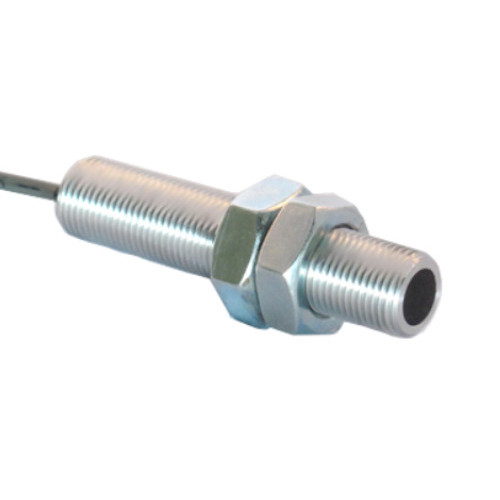

The Phares MHTS0303 Electric Digital Output Hall Effect Sensor switches logic low (“0”) when the magnetic field strength at the sensor face exceeds the hall effect operate point threshold, and switches logic high (“1”) when the magnetic field strength falls below release point threshold. The difference in the magnetic operate and release points is the hysteresis of the Hall Effect Sensor. This built-in hysteresis allows clean, fast switching of the output, even in the presence of external mechanical vibration and electrical noise. The omnipolar operation allows activation with either a north or a south polarity field of sufficient strength. In the absence of a magnetic field, the output is off.

Features:

• MHTS0303-04 = Sourcing PNP Square Wave Output w/High Temp. Operating Range w/4 ft wire length
• Output Signal: Square Wave
• Senses magnetic targets
• Operating voltage range: 5-24 VDC
• Operating Temperature: -40°F to 300°F
• Magnetic Pole Detect: North and South (Positive and Negative Field)
• Dimensions (in inches): 3” Long, 5/8” Diameter, 5/8”-18 UNF Threads
