Description

The Phares Model T6 Panel Mount Process Tachometer is an economical, easy to use, maintenance free device which utilizes proactive sensing to catch potential issues before they become a problem. Proactive sensing provides a soft landing instead of a hard crash. This prevents broken belts, gears, chains, sprockets, shear pin, and stressed, overheated electric motors. Typical applications include belt conveyors, drag conveyors, bucket elevators, fans, blowers, rock crushers, and pumps.

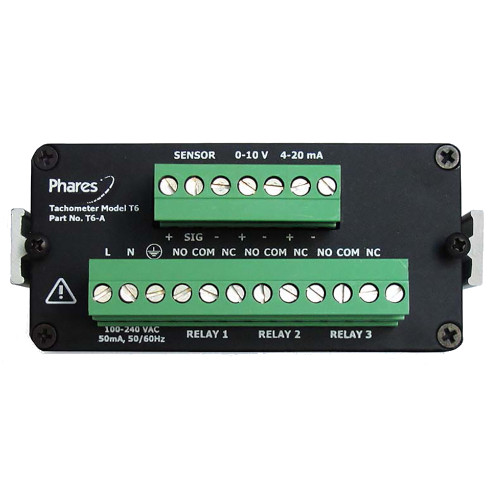

The T6 Process Tachometer features an LED display, 0-10V and 4-20mA analog output signals, and 3 SPDT programmable relays, giving you real time support for your production line. The power of data visibility dramatically improves your production.

Features:

• T6-A = 4-Digit Red LED Display w/100-240 VAC Power
• Process tachometer with programmable relays and LED display
• Red LED display, 1/2″ high alpha numeric characters
• Adjustable parameters
• 3 programmable relays with isolated N.O./N.C. (Form ‘C’) contacts
• Isolated relay contacts make integration easy into new or existing systems
• 4-20mA and 0-10V output signals, scalable, proportional to speed
• 4-20mA loop externally powered or powered via the T6 Tachometer
• 1 – 5,000 PPR (pulse per revolution), adjustable
• Universal sensor input, 2 or 3 wire, PNP or NPN for added ease of integration
• Measure RPM, Feet/Minute, and more
• Programmable Scaling and Decimal Points
• Suitable for use in wash down areas (IP67)
