Description

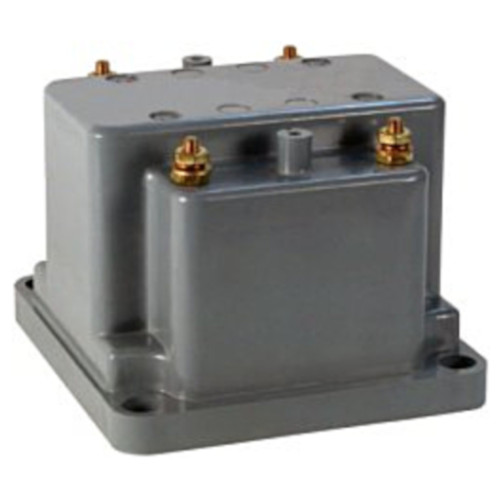

The Ram Meter Inc. 460 series of voltage transformers has a 600V, 10 kV BIL insulation class and will handle between 120V thru 600V ranges with a standard secondary voltage of 120V. These voltage transformers have a 0.6W, 1.2% accuracy class at 60 Hz and have a thermal rating of 150VA at 30°C / 100VA at 55°C. These transformers are designed for line-to-line operation, but may also be used for line-to-ground or line-to-neutral at reduced voltages.

Features:

• Accuracy Class: 0.6W, 1.2% at 60 Hz
• 600V, 10kV BIL insulation class
• Standard 120V Secondary Voltage Output
• 460 series available from 120:120V thru to 600:120V ratios
• Thermal Rating: 150VA at 30°C / 100VA at 55°C
• Terminals are brass studs No. 10-32 with 1 lockwasher, flatwasher & regular nut

Looking for a METER to compliment your PT?
Check out our selection of PANEL METERS & INSTRUMENTATION

Additional Info

• 600V
