Description

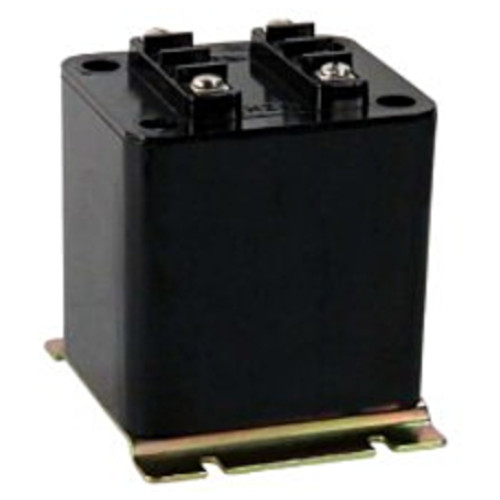

The Ram Meter Inc. 467 series of voltage transformers has a 600V, 10 kV BIL insulation class and will handle between 120V thru 600V ranges with a standard secondary voltage of 120V. These voltage transformers have an accuracy class of ±1% at all burdens up to 5 VA at 1.0 and 0.95 P.F. The 467 series has a thermal rating of 40VA at 30°C / 27VA at 55°C. These transformers are designed for line-to-line operation, but may also be used for line-to-ground or line-to-neutral at reduced voltages.

Features:

• Accuracy Class: ±1% at all burdens up to 5 VA at 1.0 and 0.95 P.F.
• 600V, 10kV BIL insulation class
• Standard 120V Secondary Voltage Output
• 467 series available from 120:120V thru to 600:120V ratios
• Thermal Rating: 40VA at 30°C / 27VA at 55°C
• Terminals are No. 6-32 screws with 1 lockwasher and 1 flatwasher

Looking for a METER to compliment your PT?
Check out our selection of PANEL METERS & INSTRUMENTATION

Additional Info

• 600V
