Description

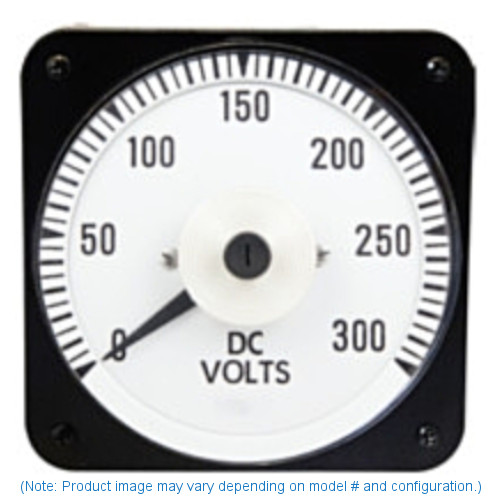

The Ram Meter Inc. MCS (Metal Case Switchboard) complies with the American ANSI-C39.1 accuracy class 1 specification. Available in a 4½” case size, the rugged design characteristics meets the needs of the most demanding environmental applications. Engineering know-how, based on time-proven designs and worldwide use, is built into every instrument. With every switchboard meter, you get pin-point accuracy and proven reliability.

Accuracy: +/- 1.0 % of full scale basic accuracy class.

Full Scale Deflection Angle: 250°

Full Scale Length: 6.9 inches

Response Time: Approx. 3 seconds maximum

Overload Rating: 1.2 X continuous

Case: All MCS instruments have a drawn steel case with matte black powder coating

Cover: Front cover has bezel & window made by one piece of flame retardant Polycarbonate molding with matte black finished bezel area

Operating Temperature: 32 – 104°F (0 – 40°C)

SPECIAL / CUSTOM RANGES & SCALES

At Ram Meter Inc. we can build virtually any meter for your application! Whether you’re looking for a non-standard input range, a custom scale or if you want a company logo printed on your meter, give us a call or fill out our Custom Instrumentation contact form and we will make sure you are taken care of right away.
