Description

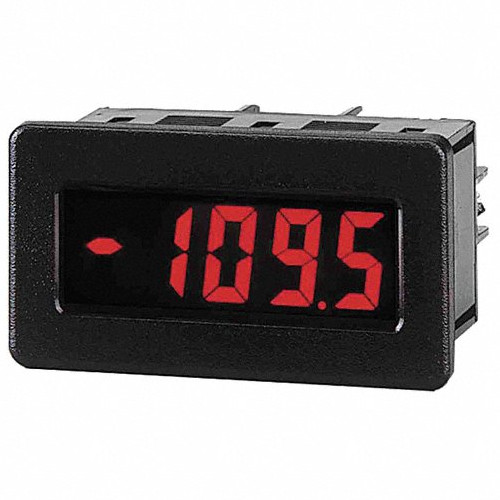

The Red Lion Controls CUB4I DC Current meters are designed and manufactured using the latest technology for a high quality, compact, affordable instrument for use in industrial environments. Each unit has a 3½-digit display with 0.6 inch (15.2 mm) high digits and a DIP switch selectable decimal point.

The units are constructed of a lightweight, high impact plastic case with a clear viewing window. The sealed front panel meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments, when properly installed. The optional Micro Line/Sensor Power Supply (Part #MLPS1000/ MLPS2000) is designed to attach to the rear of the meter to provide the necessary power for the unit. The optional supply can be powered from a 85-250 VAC source.

Features:

• CUB4I020 = Red Backlit LCD Display
• 9-28 DCV Power (85-250 ACV Power w/optional MLPS Power Supply)
• 4 Selectable Ranges: 0-199.9 DCuA, 0-1.999 DCmA, 0-19.99 DCmA & 0-199.9 DCmA
• 0.6 Inch (15.2 mm) High Digits
• Fits standard DIN cut-out: 2.68″ (68 mm) x 1.30″ (33 mm)
• Built-in scaling provided
• Auto zeroing circuit
• Selectable decimal points
• NEMA 4X/IP65 Sealed front panel bezel
