Description

The Red Lion CUB5 series provides the user the ultimate in flexibility, from its complete user programming to the optional set-point control and communication capability. The CUB5 display has 0.48″ (12.2 mm) high digits. The LCD is available in two versions, reflective and red/green backlight. The backlight version is user selectable for the desired color and also has variable display intensity.

The capability of the CUB5 can be easily expanded with the addition of option modules. Set-point capability is field installable with the addition of the set-point output modules. Serial communications capability for RS232 or RS485 is added with a serial option module.

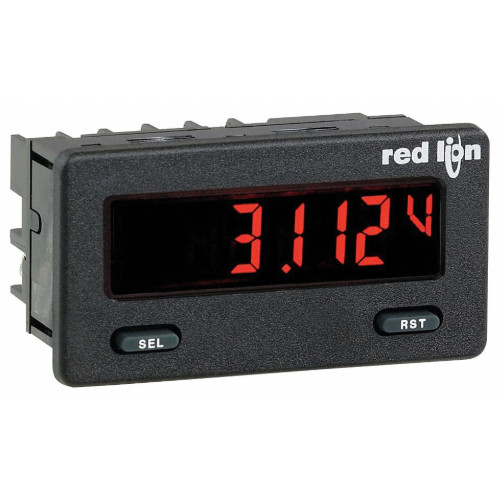

The CUB5V is a DC Volt meter which features 4 voltage input ranges that are selected by the user via a programming jumper and software input range selection. The ranges consist of 200 mV, 2V, 20V and 200V. Users should select the appropriate voltage range that covers their maximum input.

Features:

• 4 Selectable DCV ranges: 200 DCmV, 2 DCV, 20 DCV and 200 DCV
• LCD, Reflective or Red/Green LED Backlighting
• 0.48″ (12.2 mm) High Digits
• Operates from a 9-28 DCV power source
• Minimum and Maximum Display Capture
• Optional Set-Point Output Modules
• Optional Serial Communications Modules (RS232 or RS485)
• Front Panel or Crimson Software Programmable
• NEMA 4X/IP65 Sealed Front Bezel
