Description

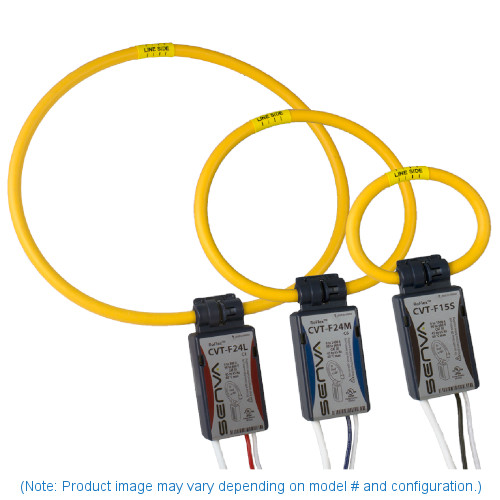

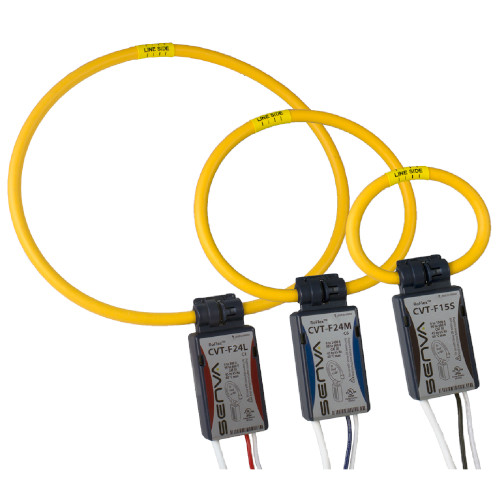

The Senva Rogowski Coil Current/Voltage Transducer™ (CVT™) measures both voltage and current, communicating the data digitally to the meter via plug-in low voltage connections. This allows the meter to remain a low voltage device. Each CVT™ uses digital communication with the meter for superior noise immunity. The CVTs™ are individually calibrated
and measurement accuracy is independent of the transducer. To complement the CVT™, the Senva metering platform offers two meter options (EM-PULSE & EM-RS485) which are small enough to fit in the palm of your hand, yet powerful enough to self-configure during installation, removing all manual configuration. Virtually a plug and play BACnet meter!

The Senva CVTs™ are best used with the Senva EM-RS485 Protocol Energy Meter

Features:

• CVT-F08S = 30-800 ACA Range w/9.00″ Coil (approximately a 2.00″ window)
• Digitally calibrated CVTs™ are extremely accurate
• The accuracy is as high as a calibrated system, yet different CVTs™ can be changed from meter to meter and the accuracy is maintained. A big advantage for auditing, since your meter is not size specific
• Plug and play installation— individual CVTs™ are
  digitally recognized by the meter base and outputs are automatically scaled—no user set up is required
• Digital communication offers superior noise immunity compared to traditional induced low signal Rogowski Coils
• All the high voltage connections are at the CVT™
• Rogowski CVTs™ are available in 4 sizes from 9” to 36” in circumference and include several rating options from 300A to 6000A and are universally rated for 90-600V

Applications:

• Energy Management and performance contracting
• Monitoring for commercial tenants
• Activity-based costing in commercial and industrial facilities
• Real-time power monitoring
• Load shedding
• Audits/temporary monitoring
• Distributed generation
