Description

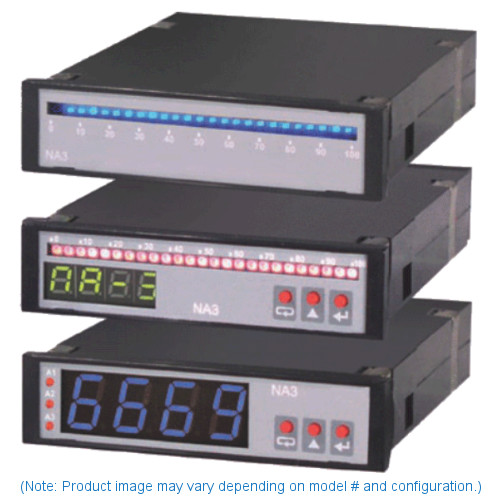

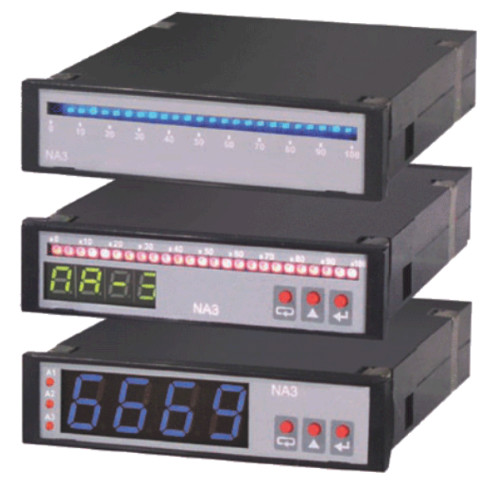

The Sifam Tinsley NA3 is a programmable, multicolor, digital bargraph meter which is designed to measure and record DC Current, DC Voltage, Resistance, RTD, Temperature and other non-electrical magnitudes such as Level, Flow, Pressure and Humidity. The NA3 is available in 3 different configurations: with digital display only, with bargraph display only and with both the bargraph AND digital display.

Features:

• 3 or 7 color bargraph
• Programming of bargraph color depending on the measured quantity value
• Universal input for the measurement of DC Current, DC Voltag, Resistance, RTD and Temperature
• Measures non-electrical magnitudes such as Level, Flow, Pressure and Humidity
• Signalling of set alarm value over flow
• Storage of measured signal in programmed time segments (750 samples)
• Current or Voltage analog output
• Communication in SCADA systems (RS485/Modbus interface RTU and ASCII)
