Description

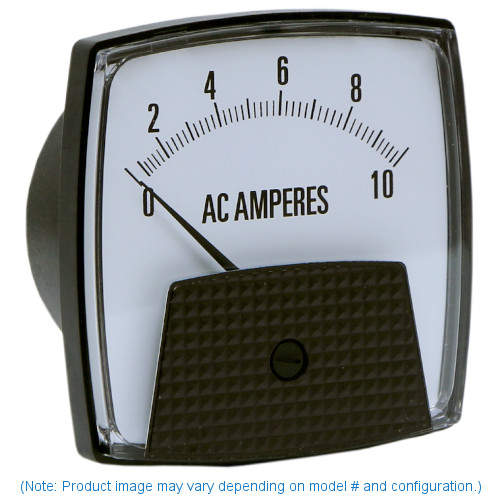

The Sifam Tinsley Smart Look range of Analog Panel meters offer accurate measurement and indication of most electrical and electronic parameters in industry
standard 2½” and 3½” case sizes. This innovative
design features a detachable lower fascia plate
which allows the flexibility of either surface
or window mounting. The fascia is simply unclipped
to achieve the completely flush panel appearance
of panel window mounting. The range offers AC and DC
Ammeters, Voltmeters and frequency meters utilizing
a high torque scale value and features a rear zero
adjuster screw for tamperproof installation. AC moving iron meters provides high accuracy True RMS measurements of 1.5%.

Features:

• Two case sizes available: 2½” and 3½”
• Dust and water jet protected to IP54 (NEMA 4)
• Withstands high levels of shock, vibration, dirt and humidity
• Complies with international standards: IEC51 (EN60051) or ANSI-C39.1
• UL approved
• Instruments comply with EN61010-1 and meets IEC414 Dielectric Test

SPECIAL / CUSTOM RANGES & SCALES

At Ram Meter Inc. we can build virtually any meter for your application! Wether you’re looking for a non-standard input range, a custom scale or if you want a company logo printed on your meter, give us a call or fill out our Custom Instrumentation contact form form and we will make sure you are taken care of right away.
