Description

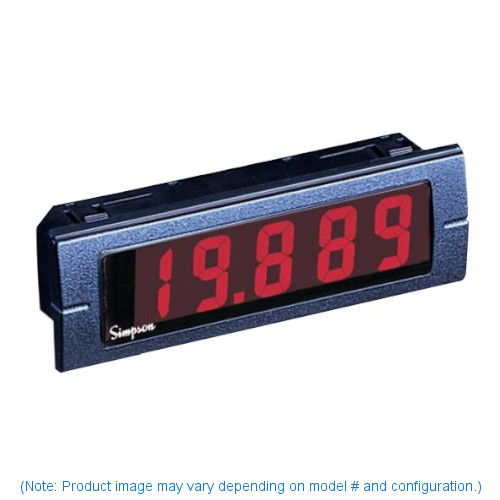

The Simpson Mini M145 digital panel meters provide high quality, accuracy, and reliability in a compact 12mm deep case. The M145 has a 4-1/2 digit, 0.5″ LCD display and is available with a negative image, bright red backlight option. The Mini M145 features user-selectable decimal point and display hold.
Three power supply choices are available, and a low battery indication is provided for 9 VDC battery applications. The Mini M145 units feature a standard 3/64-DIN high-impact plastic case. The standard LCD units have a clear viewing window. The units with optional negative image, bright red backlighting, have a red window.
Features:
- Minimum Depth Indicator – Less than 1.25″ (31.75mm) of Space Required Behind the Panel
- Fits 3/64-DIN Cutout, 22 mm x 68 mm
- 4-1/2 Digit, 0.5″ (12.7mm) High LCD
- User-Selectable Decimal Point
- Optional Negative Image, Bright Red Backlighting
- 12 Pin Mating Connector With 6″ Lead Wires Included for Easy Installation
- Display Hold Standard on All Units
- Three Power Supply Alternatives: 5 VDC, +/-5VDC or 9 VDC (With Low Battery Indication)
