Description

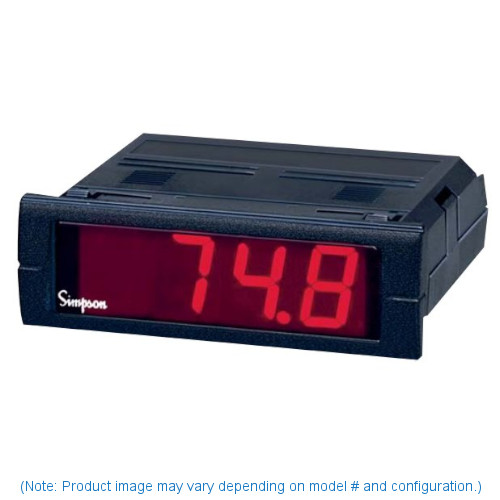

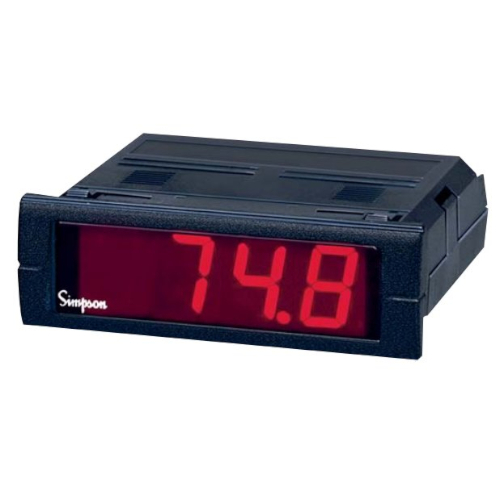

The Simpson Mini-Max digital panel meters provide high quality accuracy and reliability in a compact, 60 mm deep case. The Mini-Max temperature meter is available with a bright red LED 4-digit, 0.40" (10.2 mm) display. All units feature user-selectable decimal point, auto zero and limited scaling capabilities.

A unique mounting bracket is provided to allow for vertical or horizontal stacking of multiple indicators. All Mini-Max units feature a 3/64-DIN, high-impact plastic case.

Features:

• Shallow 2.36" (60 mm) deep case fits 3/64-DIN cutout
• 4 Digit, 0.56" high, Red LED display
• Unique mounting bracket allows stacking of multiple meters in same panel cutout
• User-selectable input type (J or K T/C, RTD Pt100, mV)
• Jumper-selectable input type and °C/°F indication
• 85-250 VAC Power Supply
