Description

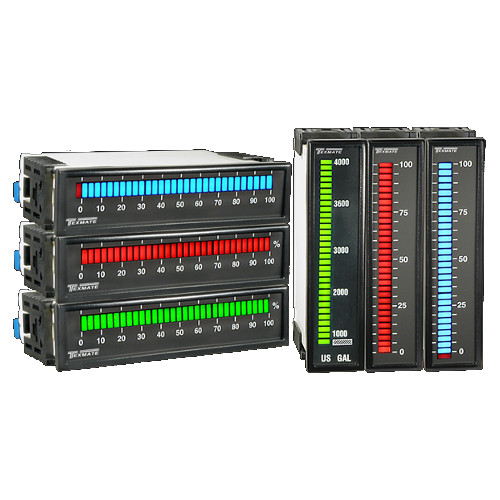

The Texmate AM-30 is a 31-segment 5 VDC powered Red, Green or Amber LED Bargraph in a compact DIN case (96 x 24mm) with a short depth (56.5mm / 2.23"). It can be ordered in either a horizontal or vertical format and both single or dual set-points are available as options. The set-points are easily adjustable by the user from the front of the meter.

There are seven header selectable input ranges of 50mV, 100mV, 200mV, 1V ,5V ,10V and 4-20 mA. The meter comes standard with a scale of 0-100%, but any required scale and unit of readout can be specially ordered. The meter may also be ordered with a dot mode display option.

The AM-30 uses a 30-pin PCB edge card connector and is designed especially for use in process applications where a low cost visual analog indication is required.

Features:

• 31 Segment LED Bargraph
• 0.20" x 0.06" segments
• BASIC AM-30 Meter = 1 VDC Input
• Additional Input ranges: 50 mVDC, 100 mVDC, 200 mVDC, 5VDC, 10VDC & 4-20 mADC
• Selectable Dot Bar mode and scale indicators
• X5 resolution increase with proportional brightness mode
• Operates as a center-zero meter with isolated 5 V power supply

Additional Info

• Panel Mount
