Description

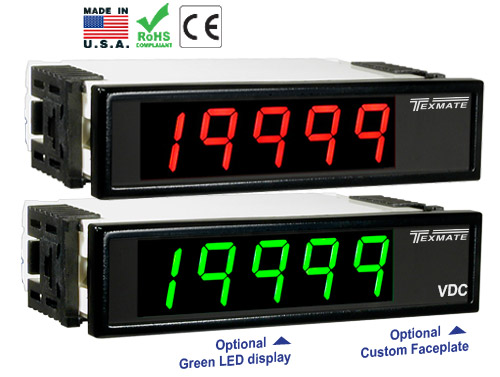

The BN-45I is a 41⁄2 digit dimmable voltmeter in a 9-36VDC compact 96x24mm case with isolated 24VDC power. Another version of the BN-45I, model BN-45, is also available with a non-isolated 5VDC power. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has three user-selectable ranges of 2V, 20V and 200V. The BN-45I may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Infor- mation below). Provision to offset the zero is also available as an option for 4-20mA signals. The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered. Display Segments Test, Display Blank and Hold Reading are standard features.
