Description

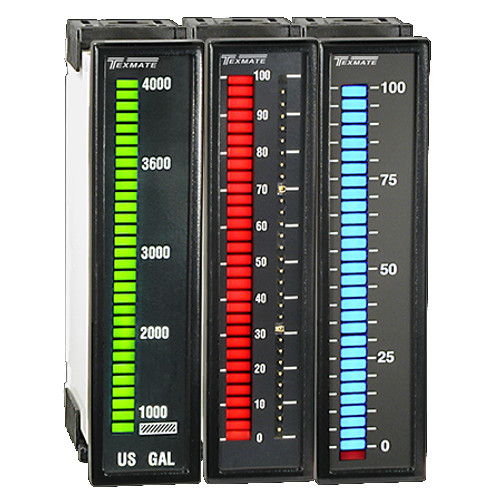

The Texmate BX-B31 is a modular compact bargraph meter which features a 31 segment Red (standard), Green (optional) or Amber (optional) display in horizontal or vertical formats. The BX-B31 is housed in a 1/16-DIN (96 X 24 mm) case which easily mounts in both thick and thin panels (up to 2")

The BX-B31 is part of the Lynx family of meters which features more than 33 different inputs via Texmate’s I-Series plug-in signal conditioning modules, including AC/DC Current, AC/DC Voltage, Process, Resistance, Strain-Gage, Temperature and many more! The BX-B31 is available with either AC or DC power and can be configured with optional set-point relay outputs.

Features:

• 31 segment AC/DC powered modular compact bargraph
• 1/16 DIN (96 x 24mm) case easily mounts in thin or thick panels (up to 2")
• Red (standard), Green (optional) or Amber (optional) colors
• Vertical or horizontal formats
• 33 different inputs available:
• AC Current
• DC Current
• AC Voltage
• DC Voltage
• Process
• Resistance
• Temperature
• Strain-gage
• And many many more…
• ACV & DCV power supply options
• Optional single or dual setpoints
• Easy configuration of relays as high or low setpoints
• Proportional brightness mode for increased effective optical resolution

Additional Info

• Panel Mount
