Description

A powerful, intelligent, 5-digit Programmable Meter Controller (PMC)
with modular outputs, input signal conditioning and advanced software
features for monitoring, measurement, control and communication applications.

Features:

• The Tiger 320 Operating System supports an easy to use
  PC based Configuration Utility Program via front panel buttons.
• The T Version supports custom macro programs that can be
  easily produced with the Tiger 320 Macro Development System
  (available FREE on the Texmate website). The Development
  System enables programs to be written in BASIC, which
  can utilize any combination of the hundreds of functions
  and thousands of registers embedded in the Tiger 320
  Operating System.

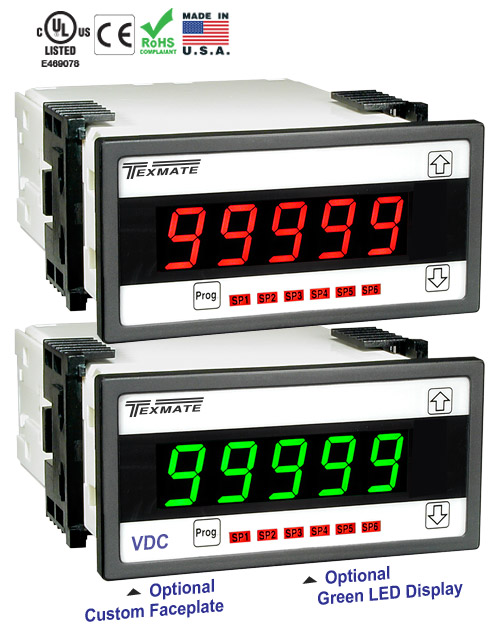

• Red, green, or superbright red 7-segment, 0.56” high LEDs
  with full support for seven segment alphanumeric text.
• Brightness control of LED display from front panel buttons.
• Modular construction with more than 120 interchangeable

input signal conditioners and more than 25 interchangeable
I/O modules.

• Up to 4 input channels with cross channel math for multi-channel processing.
• For applications where sensor excitation is required, modules are provided with 5V, 10V or 24 V DC voltage outputs.
• On demand tare, calibration and compensation can be initiated by the front panel program button.
• Autozero maintenance for super stable zero reading is provided for use in weighing applications.
• Programmable input averaging and smart digital filtering for
  quick response to input signal changes.
• Display text editing. Customize display text for OEM applications.
• Scrolling display text messaging on T meters with macros.
• Auto-sensing high voltage or optional low voltage AC / DC
  power supply
• Single or dual 16-bit Isolated Analog Outputs. Programmable
  0~4 to 20mA or 0 to 10V for retransmission, 4-20mA loops
  to drive valve actuators, remote controllers & displays, multiloop feedback and PID output. Scalable from 1 count to
  full scale.
• Dual independent totalizers to integrate input signals.
• 6 super smart, independently programmable setpoints with 8
  selectable functions, including latching, deviation, hysteresis,
  register resetting, tracking and dual PID. Plus 7 programmable timer modes on all 6 setpoints.
• Setpoint tracking, setpoint latching and manual relay reset.
• Setpoints activated from any input, any register in the meter
  or from any digital input.
• Plug-in I/O modules include electromechanical or solid state
  relays, logic outputs or open collector outputs. 6 inputs & 16
  outputs of opto-isolated I/O can be connected to an external
  DIN Rail terminal block module.
• Internal program safety lockout switch to prevent tampering.
• Peak & valley (max & min) with front panel recall and reset.
• Real time clock with 15 year Lithium battery backup.
• Data logging with SD card module with date/time stamp.
• Optional NEMA-4 front cover.
• UL Listed
