Description

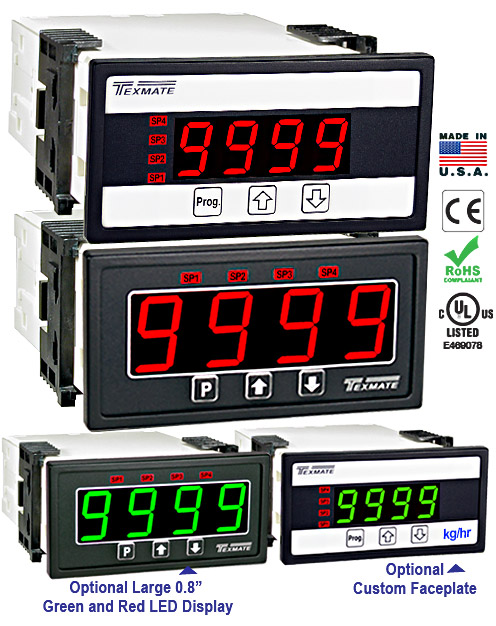

The DL-40JANUS programmable panel meter combines the functionality of our old DL-40 and DL-40PSF, allowing rescaling with or without an external signal source and features a switchable program lock.

Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78″x1.89″), Depth behind bezel: 117mm (4.61″)

Features:

• Optional isolated 14 bit analog output. User or factory scalable
  to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any desired
  digital span from ± one count to the full scale range of – 1999
  to 9999 (12000 counts).
• Optional Isolated Modbus RTU RS-485 serial communication
  with selectable baud rate (9600, 19200), address and parity.
• Auto-sensing AC/DC power supply. For voltages between
  85-265 VAC / 95-300 VDC (PS1) or 15-48 VAC / 10-72 VDC (PS2).
• 24 V DC excitation is available to power external transmitters
  and 5 or 10 V DC excitation is available for resistance bridge
  type sensors such as Load Cells and Pressure Transducers.
• Standard red or optional green or super bright red 4-digit LED
  display with range from –1999 to 9999 (12000 counts).
• Red or green 0.8” LED large display option
• Four annunciator LEDs provide front panel alarm status
  indication for up to four setpoints.
• Up to optional six relays in combination of six, four or two 4
  Amp Form A relays or two 9 Amp Form C with two or four 4
  Amp Form A relays are available.
• Automatic intelligent averaging smooths noisy signals, while
  providing a fast display response to real input signal changes.
• Three-button programming via the front panel
  (UP, DOWN and PROGRAM buttons).
