Description

The DX-35-DCA is a cost-effective, low DC voltage measuring
meter with four header selectable full scale ranges of 20mV,
50mV, 100mV(standard) and 200mV. The meter is particularly
suited for measuring DC current using 50mV standard current
shunts. After selecting a new range, re-calibration is required.
Display Hold and Display Test functions are also provided.
The standard meter has a high efficiency red LED.

Features:

• Pre-calibrated I-Series Input Signal Conditioning
  modules, that have span or zero potentiometers, can be
  interchanged between any I-Series compatible meter,
  without recalibration, because all of the analog scaling and
  reference circuitry is self-contained within the module.
• 24 V DC excitation is available to power external
  transmitters and 5 or 10 V DC excitation is available for
  strain-gages, load cells and resistance bridge type sensors.
• AC/DC Auto-sensing power supply. For voltages between
  85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).

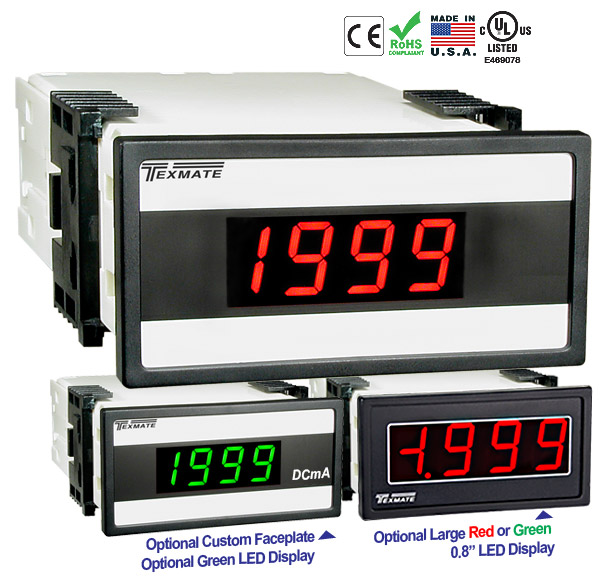

• Standard red or optional green or super bright red 3 1/2-digit
  0.56” LED with display range –1999 to 1999 (4000 counts).
• Red or green 0.8″ LED large display option.
• Display brightness may be externally controlled.
• 1/8 DIN (96 x 48mm ) case easily mounts in thin or thick
  panels (up to 2’). May be ordered with optional extra fire
  resistant metal case.
• Optional NEMA-4X, IP-65 hinged, lockable, water and dust
  proof cover.
• UL Listed
