Description

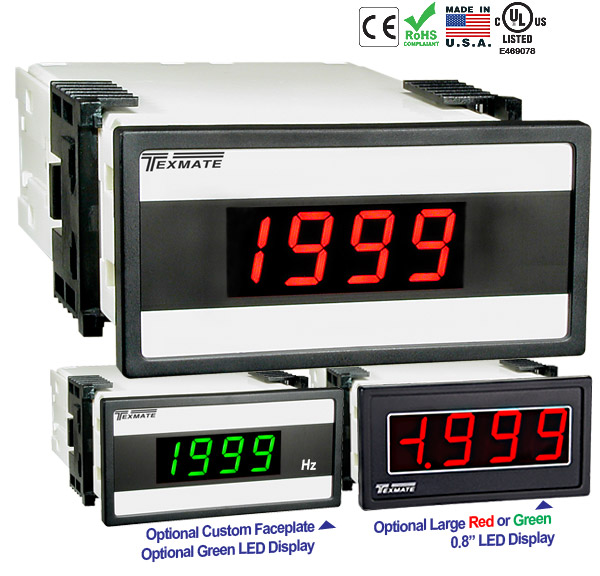

The DX-35-HZ is a cost-effective, AC line frequency measuring
meter with a factory installed range of 15.0Hz to 199.9Hz. The
unique input structure allows safe phase to phase line frequency measurements in multi-phase systems.
Display Hold and Display Test functions are also provided. The
standard meters have a high efficiency red LED display

Features:

• Pre-calibrated I-Series Input Signal Conditioning
  modules, that have span or zero potentiometers, can be
  interchanged between any I-Series compatible meter,
  without recalibration, because all of the analog scaling and
  reference circuitry is self-contained within the module.
• 24 V DC excitation is available to power external
  transmitters and 5 or 10 V DC excitation is available for
  strain-gages, load cells and resistance bridge type sensors.
• AC/DC Auto-sensing power supply. For voltages between
  85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).
• Standard red or optional green or super bright red 3 1/2-digit
  0.56” LED with display range –1999 to 1999 (4000 counts).
• Red or green 0.8″ LED large display option.
• Display brightness may be externally controlled.
• 1/8 DIN (96 x 48mm ) case easily mounts in thin or thick
  panels (up to 2’). May be ordered with optional extra fire
  resistant metal case.
• Optional NEMA-4X, IP-65 hinged, lockable, water and dust
  proof cover.
• UL Listed
