Description

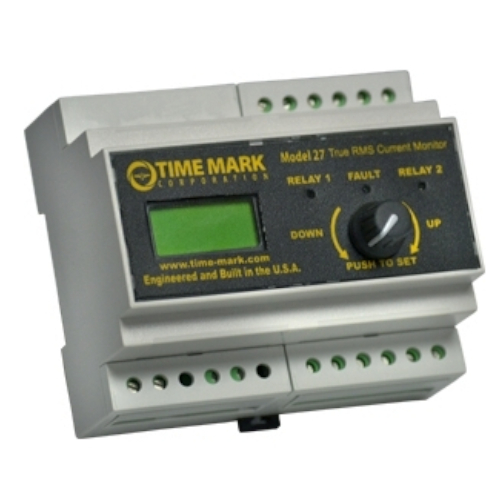

The Time Mark Model 27 True RMS Current Monitor has a display that shows the current with an accuracy of ± 0.5%. The display is updated every second and re-initialized every 30 seconds. The Model 27 has a rotary encoder with switch on the unit. By pressing the encoder switch for more than 5 seconds, the unit will enter the setup mode. This unit has a user selectable relay option for High-Low or DPDT. It can also be user-selected to energize on fault or de-energize on fault. The user can select automatic or manual restart on the Model 27. The Model 27 can be either calibrated using a True RMS Multimeter or can be restored to factory defaults in the field.

Features:

• User selectable relay operation options
• UL Listed
• Low or High Trip with independent delays or disabled
• User programmable
• Can be restored to factory settings or calibrated using a True RMS Multimeter in the field

Additional Info

• Panel Mount
• Current Monitor
• Automatic
