Description

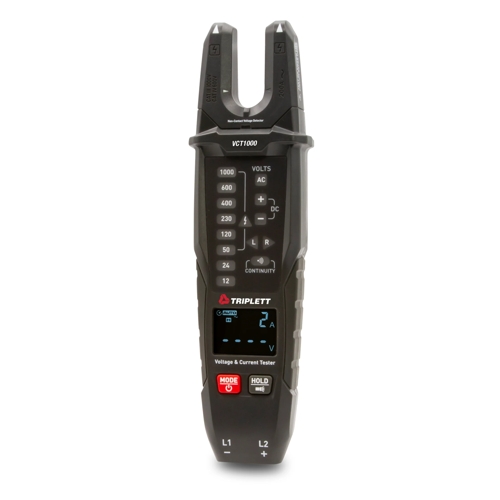

The Triplett Model VCT1000 Voltage and Current Tester can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. This saves time and the circuit will not be damaged. Additional measurements include AC/DC Voltage, Resistance, and Continuity. Measurements can read on the 2000 count, EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition. Features include: LED AC/DC Voltage indicators with polarity, a Rotary Field Indicator that checks for correct 3-phase wire sequence (L1, L2, L3) and rotation direction (R, L), a built-in NCV Detector with LED, and low battery indicator. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. Includes 2 AA batteries, test leads and pouch case.

Features:

• Features a built-in Non-Contact Voltage Tester and Phase Rotation Tester
• 2000 count EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition
• 200A AC open jaw design fits into tight spaces where a standard clamp can’t close
• LED AC/DC Voltage Indicators: 12, 24, 50, 120, 230, 400, 690, 1000V
• DC Polarity LEDs
• Rotary Field Indicator checks for correct 3-phase wire sequence (L1, L2, L3) and rotation direction (R, L)
• Built-in Non-Contact Voltage Detector with LED
• Continuity Test with audible and visual indicators
• Data Hold freezes the display
• CAT IV-600V
• Data Hold freezes the display
• Includes Test Leads, 2 AA batteries and pouch case.
