Description

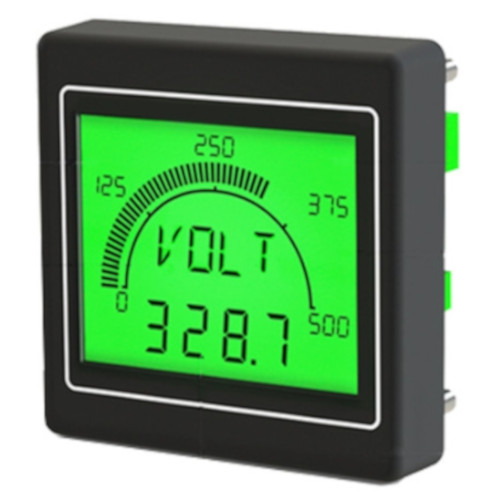

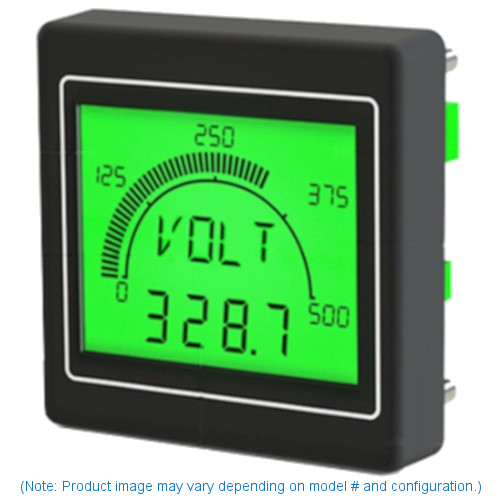

The Trumeter APM (Advanced Panel Meter) MAX combines the instant visual representation of an analog meter with the speed and accuracy of a digital meter for instant recognition and precision measurement. The APM-MAX is a large digital panel meter with a 3.20″ x 2.59″ (81.5 mm x 66 mm) display that features a two-line display, programmable scale, alarm set-points and color-changing, full color RGB backlight for instant alerts.

The APM-MAX also features digital and analog outputs and optional serial MODBUS® RTU and/or ethernet MODBUS® to communicate with other components in a system. The APM-MAX-M23 is meant for high voltage applications; configurable as a process meter or a shunt meter for DC current measurements and features IP52 and NEMA 5 and 12 ratings.

Features:

• Positive LCD Display (Negative LCD also available with minimum order quantity)
• Universal 100-240 VAC power supply (12-24 VDC also available with minimum order quantity)
• Configurable as a Process meter or a Shunt meter for DC Current measurements
• 4-20 DCmA/0-20 DCmA analog output (0-10 VDC also available with minimum order quantity)
• Modbus® RTU & Modbus® TCP/IP Communications

Large Multi-Format Display Incorporates:

• 60 segment bar graph display
• Large 4 digit display
• Separate Starburst display area for annunciators, custom messages and alarm information
• Full color RGB dynamic backlight for user alerts

Programmable:

• Scaling and Range (min and max)
• Custom annunciators
• User selectable backlight color and intensity
• Two independent alarm set-points
• Two independent outputs
• 4-20mA analog monitor output

Visibility:

• The largest display of any APM
• User adjustable RGB backlight provides an almost infinite range of colors for different requirements or environmental conditions.
• Wide viewing angle (both horizontal and vertical)
• Custom annunciators

Need a programming cable to set-up your APM meter?
Add a Trumeter APM 022128-01 USB Programming Cable to your order!
