Description

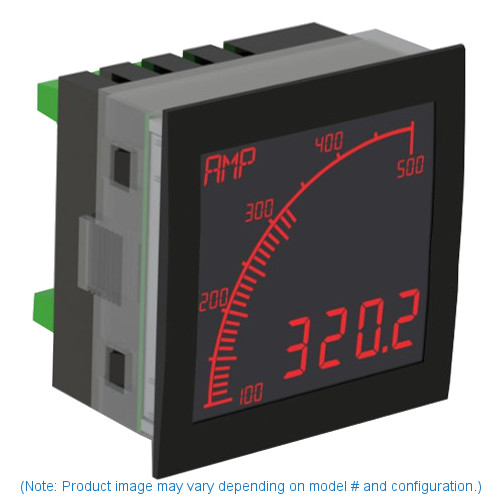

The Trumeter APM (Advanced Panel Meter) is the most visible, easy to use, multi-format, programmable panel meter on the market for measuring DC Current. The APM includes a fully programmable input, user selectable measurement ranges (min, max and span), 2 independent alarm outputs and a fully scaled analog monitor output. And all programming is accomplished through a free, easy to use PC application. The APM Shunt Meter is ideal for DC current measurement applications in marine, leisure, material handling, and industrial applications such as power supplies, load banks and charging systems. The programmable scale and custom annunciators mean users can tailor the meter to display their critical parameters exactly how they want. Dynamic backlighting, in conjunction with set-points, means operators are visually alerted when a parameter is out of range. The two outputs can be used to connect the APM to other systems in the process, meaning the APM Shunt Meter is much more than just a display.

Custom Visual Display

The APM incorporates a user selectable Red, Green or White LED backlight which features a large 4-digit display with a separate 40 segment bargraph display. The APM also features a custom message area with fully programmable display scales. In addition, the backlight can be configured to automatically change color or flash when the input reaches a certain value or goes outside a specific range.

Features:

• Measures DC Current
• Power Supply: 12-24 DCV
• Full 4-digit readout for accuracy
• 40 segment bargraph display
• Dynamic backlighting
• Programmable scale
• Custom messages and annunciators
• Excellent viewing angle
• Two independent alarm outputs
• USB port for custom user settings
• 16 position switch for standard configuration
